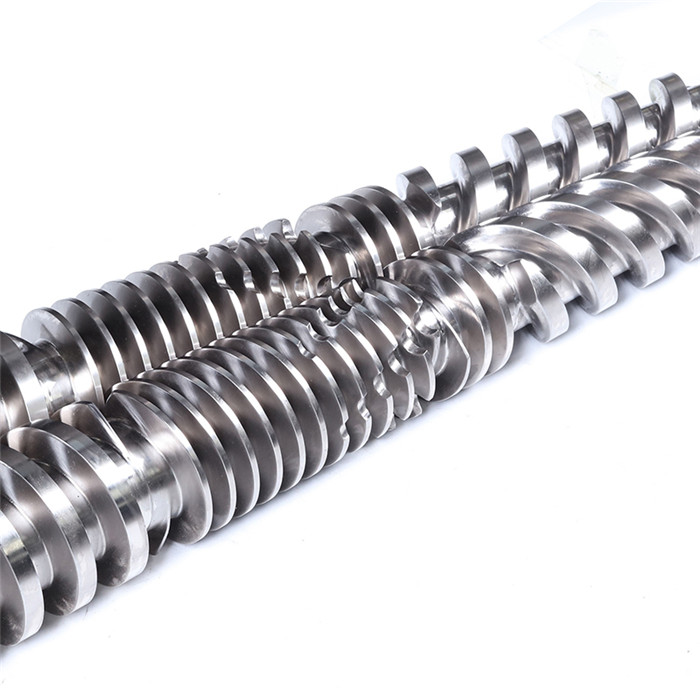

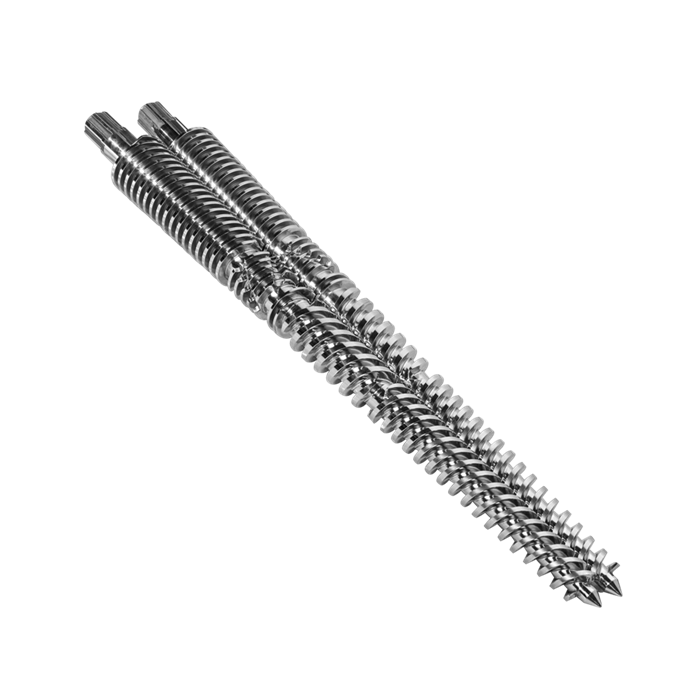

Conical twin screw extruder

Twin screw series

Tel:13957200574
E-mail:zsxcjx@zsxcjx.com

The company has strong technical force, equipped with various precision production equipment, and experimental equipment. Main products of the company: plastic machine parts, injection molding machine, TV accessories, injection molding machine accessories, barrel screw, extruder accessories, flange nozzle, screw head, injection molding machine accessories, cylinder rod, pin shaft sleeve and other products.

Product parameters

Introduction:

The screw adopts the design concept of variable pitch, variable fit clearance, fine hydrodynamics calculation, etc. to make the materials cut, mixed and compressed more softly in the screw conveying process, which is closer to the actual production needs.

Specifications:

35/76, 45/90, 45/100, 50/105, 51/105, 55/110, 55/120, 60/125, 65/120, 65/132, 68/143, 70/135,70/140, 75/150, 80/143, 80/156, 92/188,

It is standard specification and can be customized according to customer's requirements.

Process parameters:

The screw is made of high-quality 38CrMoAlA or 1.8550 forging material. After quenching and tempering hv290-320, the surface is plasma hardfacing nickel base alloy. The thickness of alloy is ≥ 1.7mm, the hardness is hrc58. After finishing, Nitrex nitriding furnace is used for overall nitriding, the nitriding depth is 0.5-0.7mm, the hardness is hv860-980, and the metallographic structure is above grade 2.

Scope of application:

PVC wood plastic, PE wood plastic, ultra-high polymer board, unburned brick support board

1:2 high calcium gusset plate, 50-400 high calcium pipes, 50-300 high calcium profiles

Soft PVC sheet, PVC foam board

General plastics, PP, PE, ABS, PVC, raw material granulation, production of pipes, profiles, sheets and other products.
